Door Protect Plus White

Door Protect Plus White

R1,086.75

Provides intelligent intrusion detection for vulnerable entry points.

SKU: LD-MC-COR422W

Additional information

Description

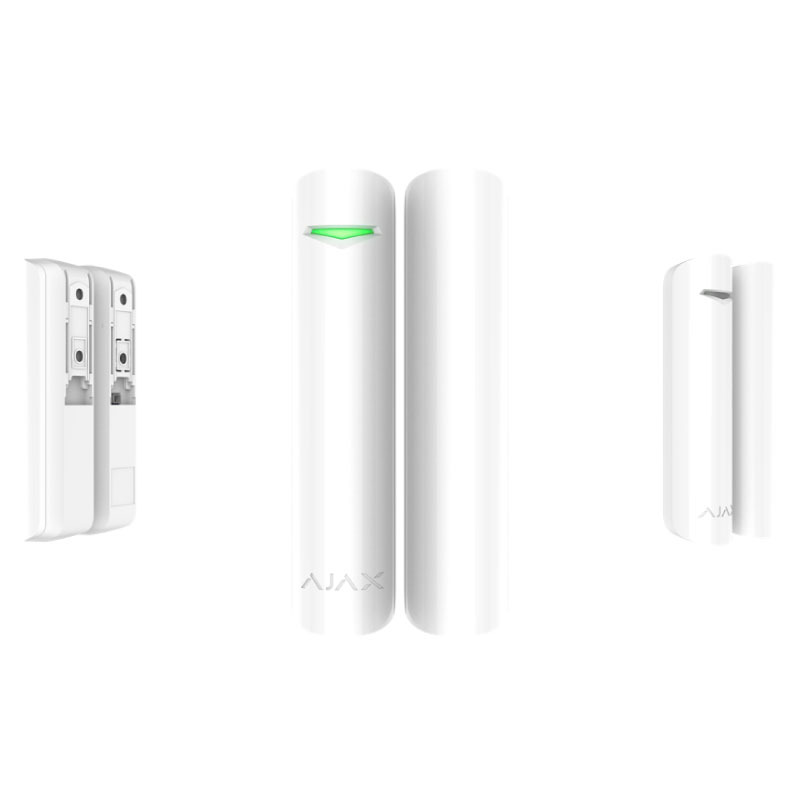

Ajax DoorProtect Plus White is a Magnetic Opening Detector with Tilt and Shock Sensor that notifies you of the first signs of intrusion into the room through the door or window. It is installed even on roof windows which can be left open when leaving the house.

Not only can the DoorProtect be used for security reasons but it’s also common to use opening detectors as an alarm for the care of the elderly, especially those with memory impairments, in social institutions or at home if they live independently despite their age and signs of the disorder, or to monitor children.

Compatible with all Ajax hubs and Ajax Range Extenders. The detector is not compatible with ocBridge Plus and uartBridge integration modules.

Please note: DoorProtect Plus operates within the Ajax system, connected to the hub via the protected Jeweller protocol.

FEATURES OF THE AJAX DOORPROTECT PLUS:

  • Wireless Indoor detector
  • Built-in battery (lasts up to 5 years)
  • Communication range of 1200m (in an open space/line of sight)
  • DoorProtect opening sensor protects even windows that are open for ventilation
  • Supports connection of a third-party wired detector with a normally closed (NC) contact type
  • Accelerometer registers changes in vertical slope angle, bangs or vibration and sends an alarm to the hub.
  • Includes magnets of various sizes for installation on narrow frames and door frames
  • The device consists of two modules detector and magnet.
  • Tamper resistant
  • Detector is set up via the Ajax app for iOS, Android, macOS and Windows
  • System notifications delivered via push notifications, SMS and calls (if activated)
  • Quick and Easy installation

INSTALLATION AND SET-UP

The Ajax DoorProtect Plus comes ready to operate straight out the box.

The battery is pre-installed, so there is no need to disassemble the detector.

With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

SPECIFICATIONS OF THE AJAX DOORPROTECT PLUS:

Compatibility Operates with all Ajax hubs and Ajax Range Extenders
Classification Combined point magnetic contact and vibration radio channel security detector
Type of detector Wireless
Installation method Indoors
Sensing element Reed switch, accelerometer
Alarm signal delivery time 0.15 s
Activation threshold Small magnet – 1 cm
Big magnet – 2 cm
Tilt More than 5°
Power supply CR123A battery, 3V
Battery life Up to 5 years
Communication range with central unit Up to 1,200 m in an open space
Two-way communication between devices Yes
Operating frequencies 868.0-868.6 MHz
Self-adjusting RF output power Up to 20 mW
Block encryption based on AES algorithm Yes
Detector polling period 12−300 s
Temperature sensor Available
Operating temperature range From -10°С to +40°С
Permissible humidity Up to 75%
Protection against fraud Yes
Jamming detection Yes
Tamper-resistant Yes
Remote setting and testing Yes
Certification Grade 2, CE
Product Dimensions Diameter: 20 mm & Height: 90 mm
Product Weight 29g
Packaging Dimensions 99 mm x 57 mm x 32 mm
Mass of unit packed 200g
Warranty 24 months limited Manufacturer’s warranty. The warranty does not cover batteries.
